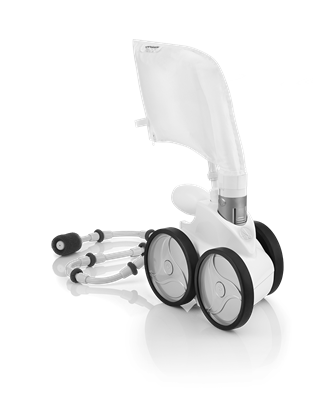

Polaris P38 Pressure Pool Cleaner

The Polaris P38 is a pressure side pool cleaner for in ground pools that keeps your pool floor...

The Polaris P38 pressure-side pool cleaner uses power and durability to sweep, scrub, and vacuum your in-ground pool.

Find a Dealer

The Polaris P38 is a pressure side pool cleaner for in ground pools that keeps your pool floor and walls clear of debris.

The Polaris P38 pressure-side pool cleaner uses power and durability to sweep, scrub, and vacuum your in-ground pool. The Polaris P38 is powered by triple jets and a separate booster pump and catches debris in its attached filter bag before it gets to your filtration system to help extend the life of your equipment. In just three hours, this pool cleaner scrubs, sweeps, and vacuums your pool’s bottom, walls, and steps. Keep your in-ground swimming pool clear of debris with the powerful, durable, and fast-cleaning Polaris P38 pressure-side Pool cleaner.

Features

  • Pressure-side pool cleaner
  • Suitable for all in-ground pools
  • Sweeps, scrubs, and vacuums
  • Covers the pool's floor, walls, and steps
  • Three hour cleaning cycles
  • 31' Feed Hose
  • Uses Separate Booster Pump
  • Includes 3 BONUS Sweep Hose Scrubbers

Specifications

Venturi Jets 3 Jets
Vacuum Inlet 2 ¼"
Drive Mechanism All-Wheel Belt Drive
Tires Classic, Black
Requires Booster Pump Yes
Auto Backup Yes
Debris Bag Single Chamber
Pool Type / Surface Inground / All
TailSweep PRO® Compatibility Yes

Exploded Parts Diagram

Automatic Pool Cleaners

Polaris P38 Parts List

Launch our online catalog viewer to review breakout diagrams and part numbers.

Learn More

Accessories

Model Description
TSP10P Polaris Tail Sweep Pro POP 18/PK TSP10
R0522400 Sweep Hose Scrubber R0522400
9-100-1014 Polaris All-Purpose Bag ,380/360 9-100-1014
9-100-1021 Polaris Zippered All-Purpose Bag 380/360 380/360 9-100-1014
9-100-1016 Polaris All-Purpose Bag, Black 360/380 9-100-1014
9-100-1022 Polaris Zippered All-Purpose Bag, Black, 380/360 380/360 9-100-1014
9-100-1024 Polaris EZ Bag, Disposable Filter Bag With Collar, 380/360 3/PK 48-133
9-100-1012 Polaris Leaf Bag, 380/360 9-100-1012
C10 Polaris Tire, MaxTrax ,380/360/280/180 C10
C11 Polaris Tire, MaxTrax, Black ,380/360/280 C11
C13 Polaris Positrax Tire 380/360
C14 Polaris Positrax Tire Black 180/280/360/380

Frequently Asked Questions

Click a frequently asked question below to see the answer.

Hangs up on steps or other obstacles longer than 3 minutes.

1. Check the wheel RPM.

2. Verify the back-up valve is cycling.

3. Adjust the thrust jet.

4. Remove unnecessary pool hardware or install a Ladder Guard Kit (order part #G21 from a Polaris dealer).

Polaris is sluggish, running with less power than normal.

1. Check the filter screen in the Quick Disconnect and clean if necessary.

2. Clean the skimmer basket, pump basket, and pool filter.

3. Check the hoses, connections, and swivels for leaks that could cause loss of water pressure.

4. Check the wheel RPM.

Polaris flies around the pool and/or does not make contact with the bottom of the pool.

1. Check the wheel RPM. If more than 32 RPM, unscrew the pressure relief valve to decrease water flow to cleaner.

2. Confirm that the blue restrictor disk is installed in the UWF to decrease water flow. If required install the red restrictor disk to decrease the water flow even more.

3. Verify that the back-up valve is cycling. Hold the valve out of the water and watch the jet. It should come on and go off.

Note: The pressure relief valve should only be adjusted when a
restrictor disk is installed.

Polaris doesn't back up.

1. Verify the back-up valve is cycling.

2. Check the wheel RPM.

3. If the filter bag is full, empty or replace it.

4. Make sure feed hose is floating.

Cleaner only turns in one direction

1. Adjust the thrust jet.

2. Make sure feed hose is floating.

Feed hose becomes tangled.

1. Remeasure the hose to verify that it is adjusted to the proper length for the pool shape.

2. With the Polaris operating, check that the swivels in the hose and the hose connections turn freely.

3. Make sure the feed hose is floating.

4. With the Polaris turned off, spin each of the wheels. All wheels should turn together.

Sweep hose is sucked into the vacuum tube.

1. Make sure the opening at the end of the sweep hose is not blocked by the sweep hose scrubber.

2. Adjust the sweep hose to a gentle sweeping motion.

Sweep hose sprays too much water out of the pool.

1. Adjust the speed of the sweep hose by tightening the adjustment screw.

2. Replace the sweep hose scrubber if it is worn or missing.

3. Add a sweep hose weight (order part #B2) to keep the sweep hose from spraying.

The Cleaner does not clean the entire pool.

1. Verify that feed hose reaches within 6" of the farthest point of the pool. If not, order a new hose section from your Polaris dealer.

2. Check the thrust jet for 11:00 position that optimizes random turning.

3. While the cleaner is operating, hold it upside down and look into the vacuum tube. There should be three distinct, even jets of water. If there are not, contact Customer Service or a Polaris authorized Service Center for assistance.

The cleaner is running in circles on its side.

1. Empty the filter bag. A full bag can weigh the cleaner down on one side.

2. Remove the head float and shake it. If there is water in the float, replace it.

3. Check the hose floats to make sure they are spaced evenly.

Resources

P38 Addendum

Item #: SA1023
File Size: 235188
Language: EN

Download View Online

Polaris P38 / P39 Brochure

Item #: SL828
File Size: 1625773
Language: EN

Download View Online

Polaris 380/P38 Owner's Manual

Item #: H0498400
File Size: 1461125
Language: EN

Download View Online

Polaris 380/P38 Quickstart Guide

Item #: H0498500
File Size: 1251316
Language: EN

Download View Online
